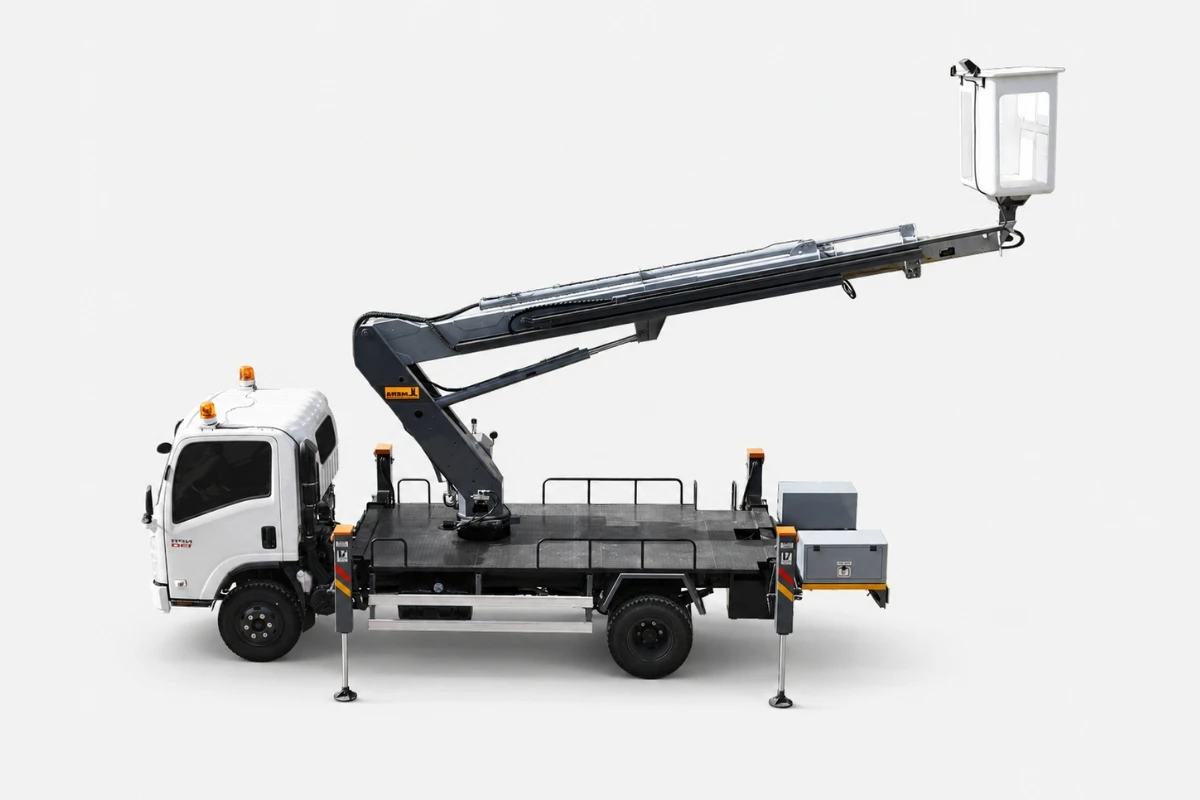

Meraj Bucket Platform
Meraj manufactures a comprehensive range of truck-mounted aerial bucket platforms engineered for safe and efficient high-elevation access. The lineup supports working heights from 12 to 50 meters and features distinct boom geometries to navigate diverse urban, industrial, and utility environments.

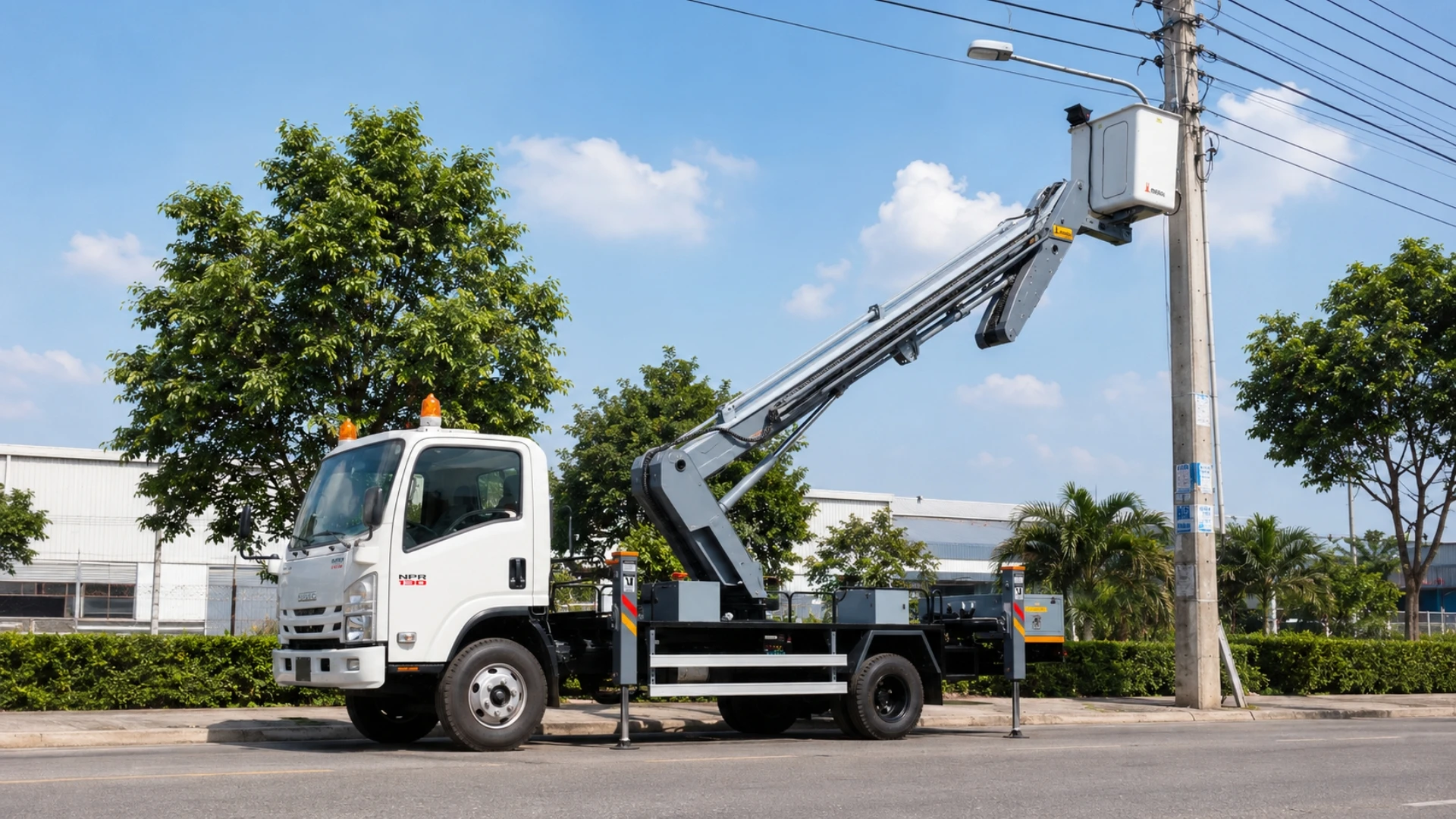

The MTBP series utilizes a straight-extending telescopic boom mechanism, providing maximum outreach and vertical height. This linear extension is built for direct line-of-sight applications such as street lighting, telecom line maintenance, and direct structural repairs.
Technical Highlights
Working Height
12m to 50m models available, including standard 14m, 15m, 16m, 18m, 20m, and 22m kits.

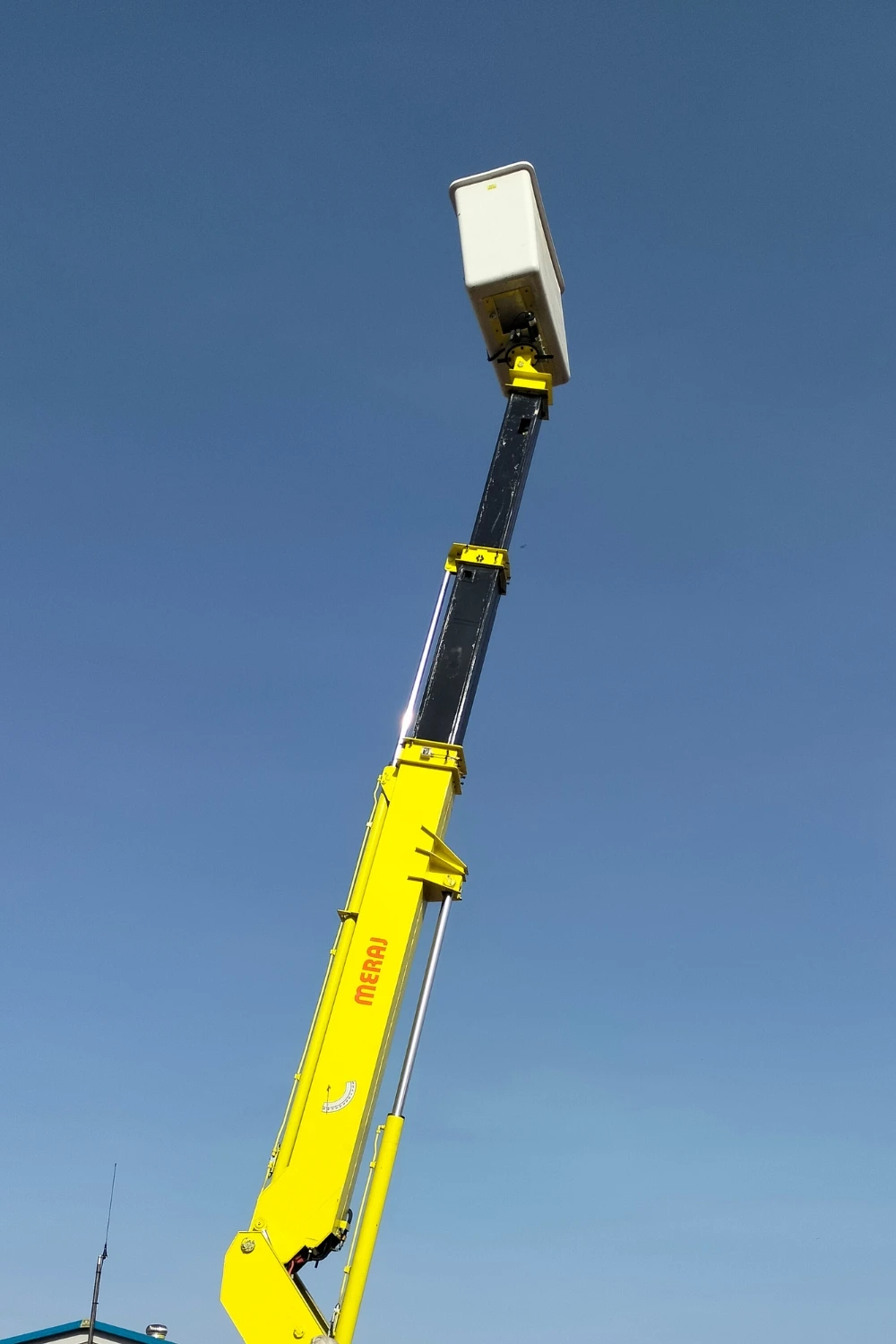

Boom Mechanics
Main boom integrated with up to 3 telescopic extensions.

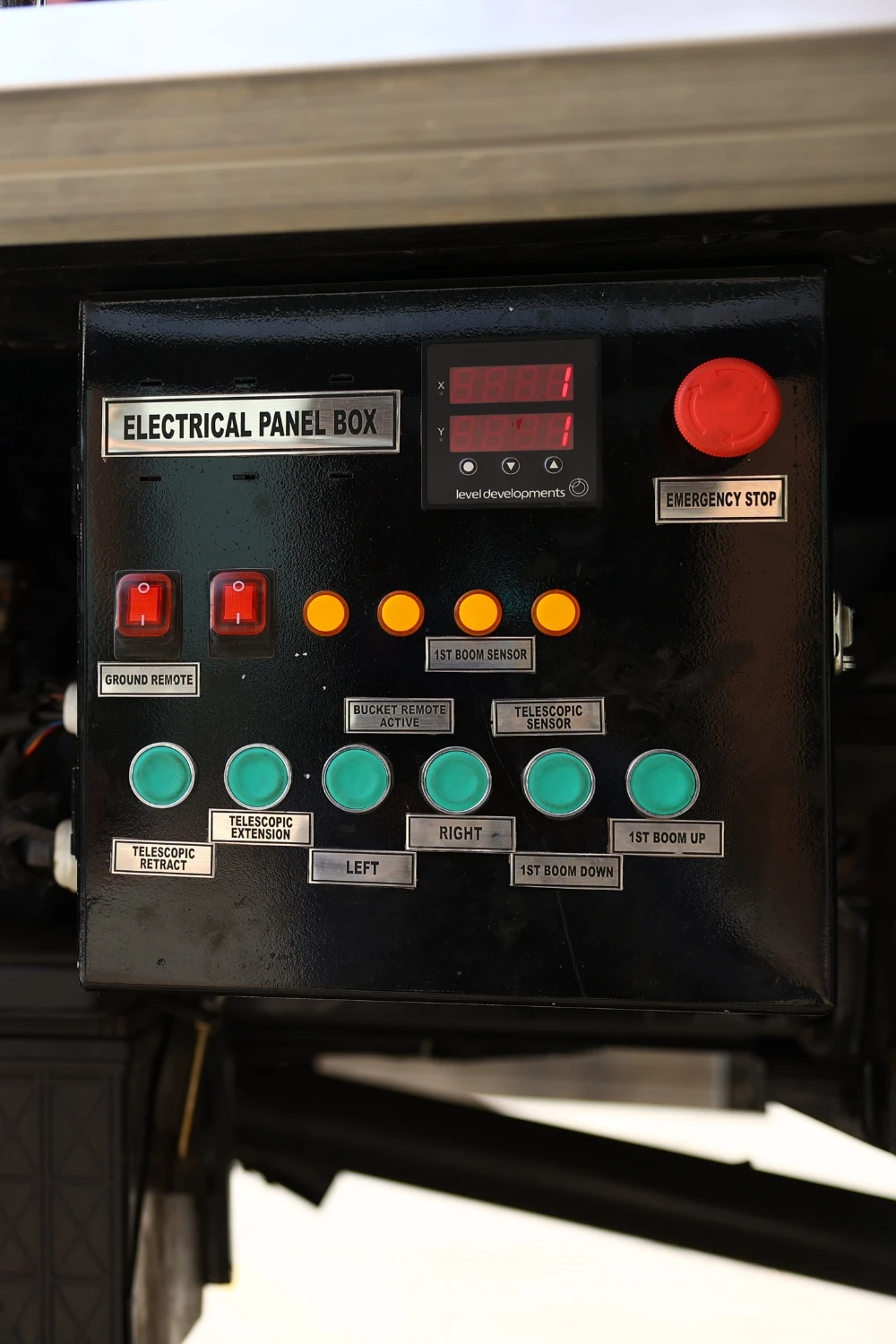

Control System
Electronic basket controls featuring the M+ system to automatically limit outreach based on basket weight.
Rotation
Continuous 360-degree rotation.

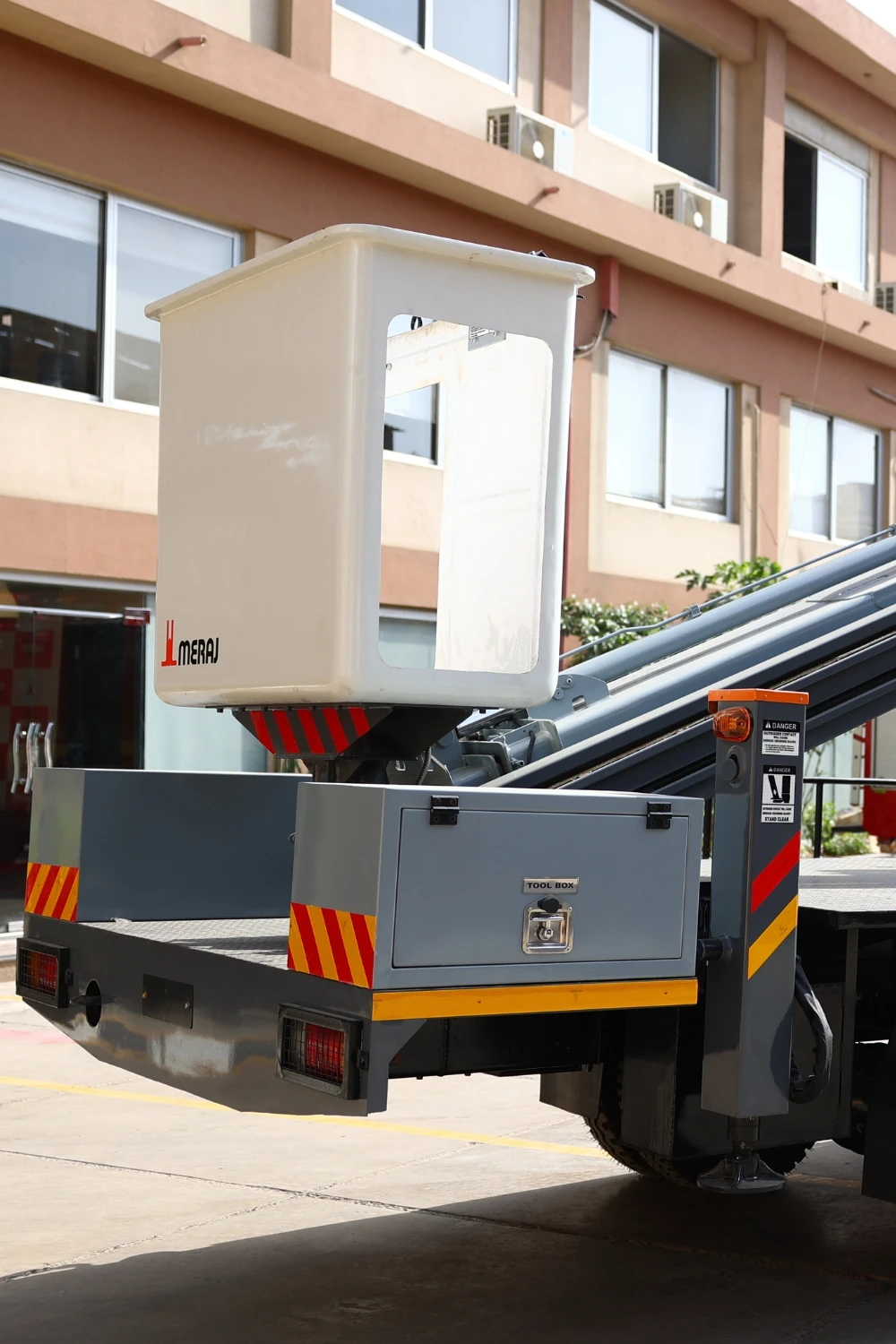

Basket Features
Automatic hydraulic leveling; available in standard glass-filled nylon with 50 kV poly liner or aluminum.
Chassis Integration
Designed for 5.5-ton to 10-ton GVW chassis, model dependent.
Boom Mechanics
Hinged sections pivoting at lower and upper knuckle joints using hydraulic actuators.
Platform Capacity
200 kg to 275 kg.
Obstacle Clearance
High vertical and horizontal barrier clearance capability.
Safety Systems
Overload alarms and safety valves guarding against hydraulic line damage.
Chassis Integration
Mounted on 5-ton to 15-ton GVW chassis depending on the specific model height.
Working Height
Standard configurations at 14m, 16m, and 19m.
Insulation (MATBP-I)
Available with ANSI Category 'C' insulation for 46 kV and below, strictly for live-line maintenance.
Safety Integration
Outrigger boom interlock system with independent commands and energized line detectors.
Platform Capacity
200 kg to 275 kg capacity with continuous 360-degree rotation.
System Pressure
Operates at 180 - 200 bar with a 1400 bar bursting strength.
