Articulated Telescopic
Insulated Bucket Platform

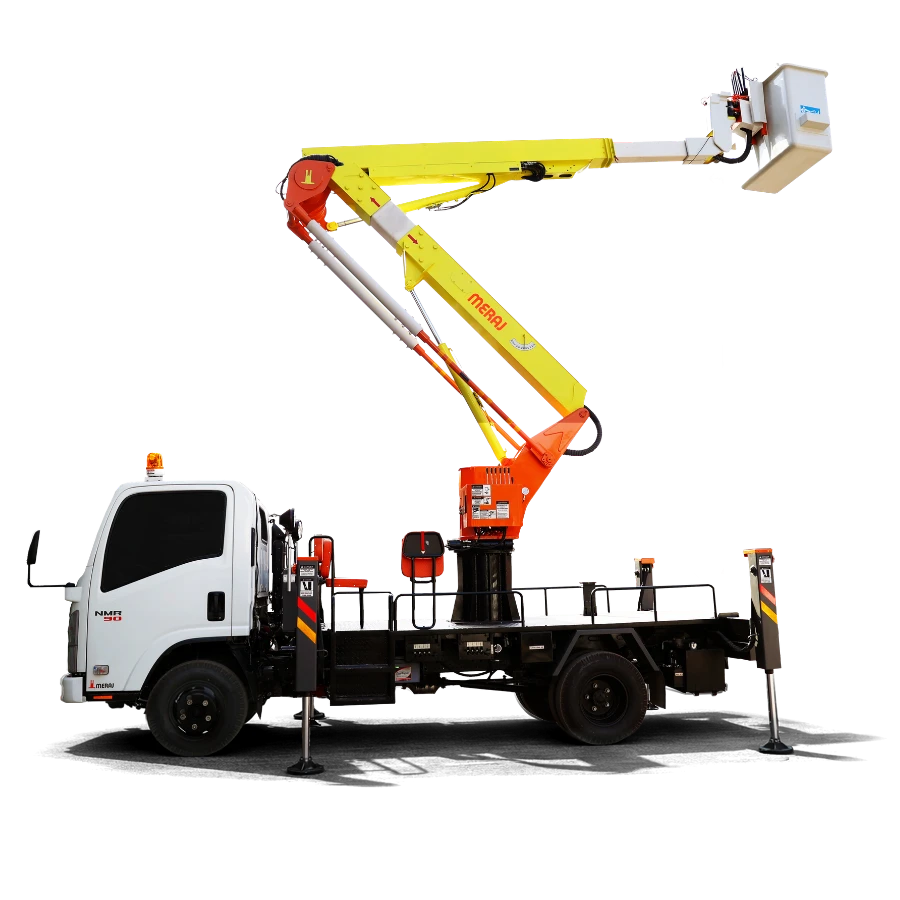

The MATBP 14m is a compact Articulated Telescopic Insulated Bucket Platform designed for urban live-line maintenance. Rated as ANSI Category C for 46 kV and below, it delivers a 14-meter working height while maintaining a small footprint on a 5.3-ton chassis. Its articulated telescopic boom supports precise positioning for utility crews while the compact chassis remains practical for constrained urban work areas.
Working Height
14 Meters
Achieves a maximum working height for elevated utility service.
Working Side Reach
8 Meters
Provides dependable horizontal access around the work area.
Mounted on
5.3-ton GVW Chassis
Supports a stable working platform on a commercial chassis.
Platform Capacity
200kg
Carries personnel and tools for live-line maintenance.
Technical Data & Additional Accessories
Working Height 14 Meters
System Pressure 180 bar
Platform Capacity 200 kgs
Bursting Strength 1400 bar
Stowed Height 3.4 Meters
Continuous Rotation 360 Degree
- Hydraulic Cutter Saw
- Hydraulic Crimping Press
- Wireless Intercom (Walkie Talkie)
- Adjustable Search Lights for Working At Night
- Handheld Search Light
- Outrigger Pads
- Safety Cones
